Spindles are checked for faults on arrival before being completely stripped & thoroughly checked in
an Ultrasonic Degreasing Tank. Parts are then checked for wear or damage & to ensure they are
within manufacturers specifications.
Spindles are expertly calibarated in a clean enviroment
Once this has been carried
out, a quotation is prepared
for your approval
Ultrsonic cleaning equipment for spindles
Ball Bearing Spindles - Rotors are checked for imbalance and corrected where necessary to obtain optimum dynamic runout, lifespan & quiet running. The spindle is then reassembled in our Positive Pressure
Clean Room facility with new Aerospace Grade Bearings.
Once reassembled & preliminary checks have been

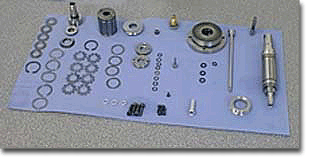

carried out the spindle is subjected to a Test & Run Procedure to ensure reliability when returned to production.		 spindles cleaned repaired and awaiting assembly
Cleaned Repaired & Tested With over 25 yrs experiance in building the belt driven R100 Spindle.
Rotech Spindle Services Ltd are able to offer Replacement Spindles, Service Exchange Units or a repair service for your exsisting Spindles

All spindles are stripped & inspected before being Ultrasonically cleaned and reassembled with Abec 7 bearings.
Spindles are then balanced as an assembly & shaft tapers ground to ensure optimum runout.
The Spindle is then run in ready for production on a purpose
built test rig.
All spindles are supplied with a new collet & nut.
Air Bearing Spindles - Bearings are refurbished or replaced where necessary. The Spindle is then reassembled in a clean room.
After preliminary checks the spindle is tested for imbalance and
corrected where necessary to ensure Optimum Dynamic Performance.		 spindles on inspection

With Quick Turnaround Rotech can support any PCB manufacturer who are Drilling or Routing Printed Circuit Boards on any machine such as :

  • Schmoll
  • LENZ
  • Klingenberg
  • Wessel
  • SEL
  • Hitachi
